VDE Insulated Tools — Built for the Line, Proven Under Pressure

Professional-grade insulated tools that go where others won’t — and come back safe.

Dielectric Safety

All units per batch pass 10,000V dielectric test (50Hz, 1 min) by independent labs, no random sampling. Test reports available for verification. We go beyond IEC/EN 60900.

15 Patents

15 patents cover key structures and processes including jaw, measuring unit, safety lock and coating. Featuring a world-first built-in cable cutting depth measuring device. All patents verifiable via CNIPA.

Ultra-wearproof Insulating Coating

Patented coating improves insulation wear resistance by 40%. Dielectric performance remains stable after 10,000 plug cycles, prolonging service life and reducing costs.

Low Shear Resistance

Optimized jaw curve reduces shear force by 30%, delivering neat cuts and less wire damage. Relieves fatigue during prolonged operation.

Fast Delivery

MOQ: 50 sets per spec (vs 200 sets industry average). Delivery: 15-25 days. Full OEM/ODM available; logos, colors and packaging customizable.

Item Code		L(mm)	A(mm)	B(mm)
G1072006	6	79	7.5	16.5
G1072007	7	88	7.5	21.5
G1072008	8	97.5	8	24
G1072009	9	105.5	8.5	26
G10720010	10	110.5	9	28
G10720011	11	124	9	30
G1072012	12	132.5	9.5	32
G10720013	13	141.5	10	34.5
G10720014	14	150.5	10	36.5
G10720015	15	159	10.5	38.5
G10720016	16	164	10.5	40
G10720017	17	177	11.5	42.5
G1072018	18	184	12	44.5
G10720019	19	195	12	47
G1072021	21	212	13	51
G10720022	22	221	13	53
G1072024	24	238	13.5	57
G1072027	27	264	14.5	63.5
G1072030	30	292	15	69.5
G1072032	32	309	16	73

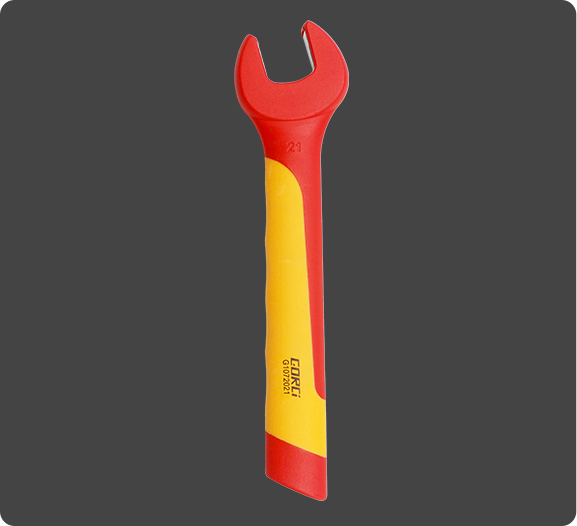

Insulated Open-end Spanner

Open-end Design

Insulated Handle

Standards Compliance

● Product Parameters
