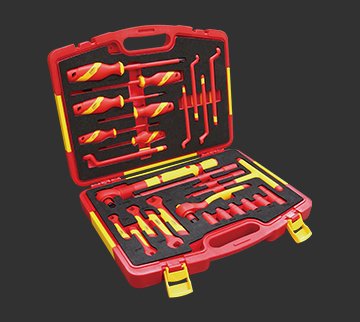

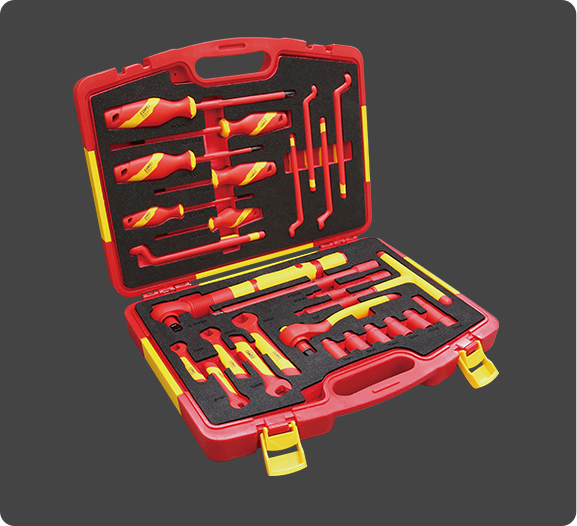

27PCS VDE Insulated Tool Set (Plastic Box)
● According to BS EN IEC 60900:2018.
● All-in-one kit, no separate purchases needed. Saves time and cost, ideal for professional electricians and maintenance.
● Eash tool individually tested at 10000V AC.
Kit Combination
Multi-tool kit: screwdrivers, pliers, wrenches, scissors, etc. All-in-one for various tasks.
Portable/mobile
Carry case, ideal for on-site and mobile repairs.
Standards Compliance
According to BS EB IEC 60900:2018.
● Product Parameters
| Item Code | G2030023 | ||
| Insulated Open-end Spanner | G1072007 | 7mm | 1 |
| G1072008 | 8mm | 1 | |
| G10720010 | 10mm | 1 | |
| G1072012 | 12mm | 1 | |
| G10720014 | 14mm | 1 | |
| Insulated Ring Wrench | G1071007 | 7mm | 1 |
| G1071008 | 8mm | 1 | |
| G1071010 | 10mm | 1 | |
| G1071012 | 12mm | 1 | |
| G1071014 | 14mm | 1 | |
| 3/8″ Insulated Hexagon Sockets | G1051807 | 7mm | 1 |
| G1051808 | 8mm | 1 | |
| G1051810 | 10mm | 1 | |
| G1051812 | 12mm | 1 | |
| G1051814 | 14mm | 1 | |
| 3/8″ Insulated Extension Bar | G1061801 | 125mm | 1 |
| G1061802 | 250mm | 1 | |
| 3/8″ Insulated Injection T-handle Wrench | G1074820 | 200mm | 1 |
| 3/8″ Insulated Torque Wrench | G1091825 | 5-25 N.m | 1 |
| 3/8″ Insulated Ratchet Wrench | G1073402 | 200mm | 1 |
| 3/8″ Insulated Long Socket Bit | G1055110 | 10mm | 1 |
| Insulated Phillips Screwdrivers | G102009 | PH1x80mm | 1 |
| G1020010 | PH2x100mm | 1 | |
| G1020011 | PH3x150mm | 1 | |
| Insulated Slotted Screwdrivers | G102001 | 2.5x75mm | 1 |
| G102003 | 3x100mm | 1 | |
| G102006 | 6.5x150mm | 1 | |
VDE Insulated Tools — Built for the Line, Proven Under Pressure
Professional-grade insulated tools that go where others won’t — and come back safe.
Dielectric Safety
All units per batch pass 10,000V dielectric test (50Hz, 1 min) by independent labs, no random sampling. Test reports available for verification. We go beyond IEC/EN 60900.
15 Patents
15 patents cover key structures and processes including jaw, measuring unit, safety lock and coating. Featuring a world-first built-in cable cutting depth measuring device. All patents verifiable via CNIPA.
Ultra-wearproof Insulating Coating
Patented coating improves insulation wear resistance by 40%. Dielectric performance remains stable after 10,000 plug cycles, prolonging service life and reducing costs.
Low Shear Resistance
Optimized jaw curve reduces shear force by 30%, delivering neat cuts and less wire damage. Relieves fatigue during prolonged operation.
Fast Delivery
MOQ: 50 sets per spec (vs 200 sets industry average). Delivery: 15-25 days. Full OEM/ODM available; logos, colors and packaging customizable.
VDE
IEC/EN 60900
1000V AC
CE
MD 2006/42/EC
GS
DIN EN 60900
CCC
GB /T 18269
