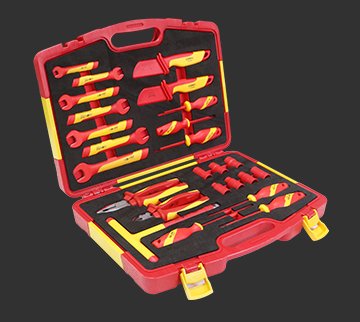

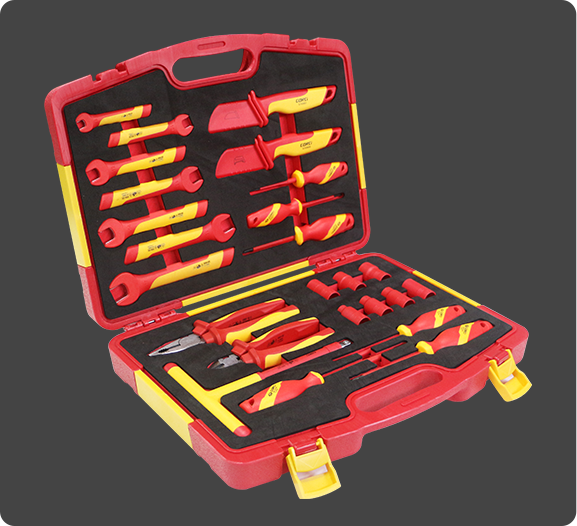

25PCS VDE Insulated Tool Set (Plastic Box)
● According to BS EN IEC 60900:2018.
● All-in-one kit, no separate purchases needed. Saves time and cost, ideal for professional electricians and maintenance.
● Eash tool individually tested at 10000V AC.
Kit Combination
Multi-tool kit: screwdrivers, pliers, wrenches, scissors, etc. All-in-one for various tasks.
Portable/mobile
Carry case, ideal for on-site and mobile repairs.
Standards Compliance
According to BS EB IEC 60900:2018.
● Product Parameters
| Item Code | G2030002 | ||
| Insulated Combination Plier | G101009 | 200mm | 1 |
| Insulated Diagonal Cutting Plier | G101002 | 160mm | 1 |
| Insulated Slotted Screwdrivers | G102001 | 2.5x75mm | 1 |
| G102004 | 4.0x100mm | 1 | |
| G102005 | 5.5x125mm | 1 | |
| Insulated Phillips Screwdrivers | G102008 | PH0x75mm | 1 |
| G102009 | PH1x80mm | 1 | |
| G1020010 | PH2x100mm | 1 | |
| Insulated Cable Knife | G103001 | 190mm | 1 |
| Sickle Shaped Insulated Cable Knife With Guide Shoe | G103005 | 185mm | 1 |
| Insulated Open-end Spanner | G1072008 | 8mm | 1 |
| G10720010 | 10mm | 1 | |
| G10720012 | 12mm | 1 | |
| G10720013 | 13mm | 1 | |
| G10720014 | 14mm | 1 | |
| G10720015 | 15mm | 1 | |
| G10720017 | 17mm | 1 | |
| 3/8″ Insulated T-handle Wrench | G1074820 | 200mm | 1 |
| 3/8″ Insulated Hexagon Sockets | G1051808 | 8mm | 1 |
| G1051810 | 10mm | 1 | |
| G1051811 | 11mm | 1 | |
| G1051812 | 12mm | 1 | |
| G1051813 | 13mm | 1 | |
| G1051814 | 14mm | 1 | |
| G1051816 | 16mm | 1 | |
VDE Insulated Tools — Built for the Line, Proven Under Pressure
Professional-grade insulated tools that go where others won’t — and come back safe.
Dielectric Safety
All units per batch pass 10,000V dielectric test (50Hz, 1 min) by independent labs, no random sampling. Test reports available for verification. We go beyond IEC/EN 60900.
15 Patents
15 patents cover key structures and processes including jaw, measuring unit, safety lock and coating. Featuring a world-first built-in cable cutting depth measuring device. All patents verifiable via CNIPA.
Ultra-wearproof Insulating Coating
Patented coating improves insulation wear resistance by 40%. Dielectric performance remains stable after 10,000 plug cycles, prolonging service life and reducing costs.
Low Shear Resistance
Optimized jaw curve reduces shear force by 30%, delivering neat cuts and less wire damage. Relieves fatigue during prolonged operation.
Fast Delivery
MOQ: 50 sets per spec (vs 200 sets industry average). Delivery: 15-25 days. Full OEM/ODM available; logos, colors and packaging customizable.
VDE
IEC/EN 60900
1000V AC
CE
MD 2006/42/EC
GS
DIN EN 60900
CCC
GB /T 18269
