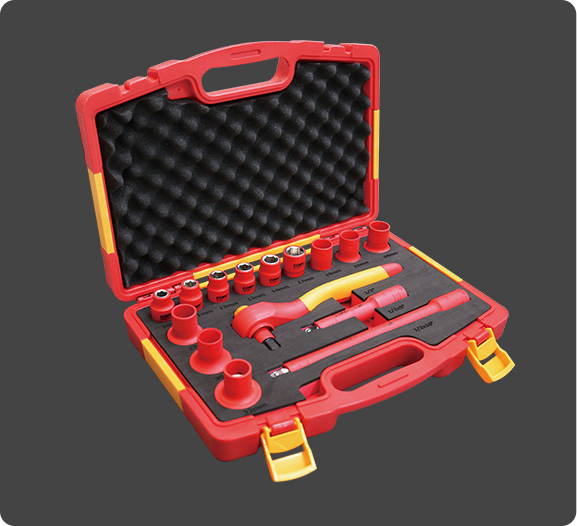

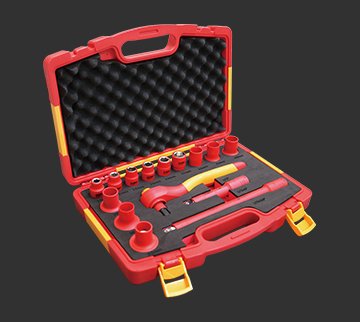

15PCS VDE Insulated Tool Set (Plastic Box)
● According to BS EN IEC 60900:2018.
● All-in-one kit, no separate purchases needed. Saves time and cost, ideal for professional electricians and maintenance.
● Eash tool individually tested at 10000V AC.
Kit Combination
Multi-tool kit: screwdrivers, pliers, wrenches, scissors, etc. All-in-one for various tasks.
Portable/mobile
Carry case, ideal for on-site and mobile repairs.
Standards Compliance
According to BS EB IEC 60900:2018.
● Product Parameters
| Item Code | G2030018 | ||
| 1/2″ Insulated Ratchet Wrench | G1072403 | 250mm | 1 |
| 1/2″ Insulated Extension Bar | G1061803 | 125mm | 1 |
| G1061804 | 250mm | 1 | |
| 1/2″ Insulated Hexagon Sockets | G1051210 | 10mm | 1 |
| G1051211 | 11mm | 1 | |
| G1051212 | 12mm | 1 | |
| G1051213 | 13mm | 1 | |
| G1051214 | 14mm | 1 | |
| G1051217 | 17mm | 1 | |
| G1051219 | 19mm | 1 | |
| G1051222 | 22mm | 1 | |
| G1051224 | 24mm | 1 | |
| G1051227 | 27mm | 1 | |
| G1051230 | 30mm | 1 | |
| G1051232 | 32mm | 1 | |
VDE Insulated Tools — Built for the Line, Proven Under Pressure
Professional-grade insulated tools that go where others won’t — and come back safe.
Dielectric Safety
All units per batch pass 10,000V dielectric test (50Hz, 1 min) by independent labs, no random sampling. Test reports available for verification. We go beyond IEC/EN 60900.
15 Patents
15 patents cover key structures and processes including jaw, measuring unit, safety lock and coating. Featuring a world-first built-in cable cutting depth measuring device. All patents verifiable via CNIPA.
Ultra-wearproof Insulating Coating
Patented coating improves insulation wear resistance by 40%. Dielectric performance remains stable after 10,000 plug cycles, prolonging service life and reducing costs.
Low Shear Resistance
Optimized jaw curve reduces shear force by 30%, delivering neat cuts and less wire damage. Relieves fatigue during prolonged operation.
Fast Delivery
MOQ: 50 sets per spec (vs 200 sets industry average). Delivery: 15-25 days. Full OEM/ODM available; logos, colors and packaging customizable.
VDE
IEC/EN 60900
1000V AC
CE
MD 2006/42/EC
GS
DIN EN 60900
CCC
GB /T 18269
