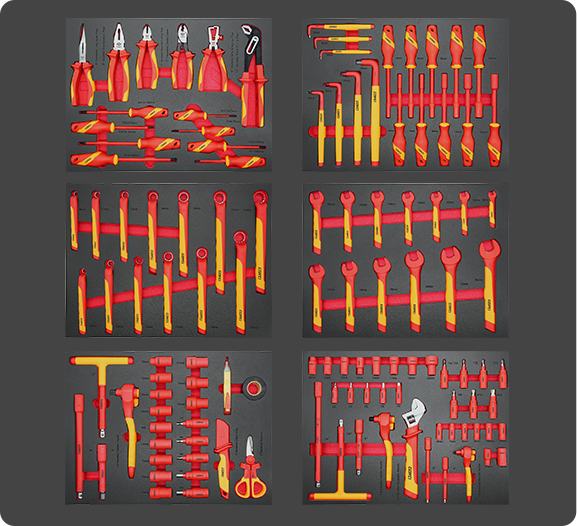

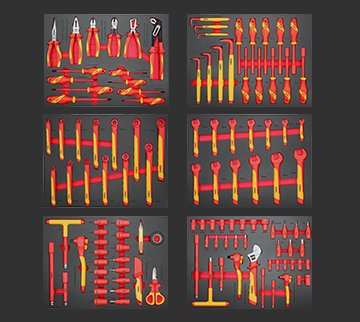

118PCS VDE Insulated Tool Set
● According to BS EN IEC 60900:2018.
● All-in-one kit, no separate purchases needed. Saves time and cost, ideal for professional electricians and maintenance.
● Eash tool individually tested at 10000V AC.
Kit Combination
Multi-tool kit: screwdrivers, pliers, wrenches, scissors, etc. All-in-one for various tasks.
Portable/mobile
Carry case, ideal for on-site and mobile repairs.
Standards Compliance
According to BS EB IEC 60900:2018.
● Product Parameters
| Item Code | G2060002 | ||
| Insulated Long Nose Plier | G1010010 | 200mm | 1 |
| Insulated Diagonal Cutting Plier | G101002 | 160mm | 1 |
| Insulated Combination Plier | G101009 | 200mm | 1 |
| Insulated Wire Strippers | G101006 | 160mm | 1 |
| Insulated Cable Cutter | G1010021 | 160mm | 1 |
| Insulated Cable Knife | G103001 | 190mm | 1 |
| Insulated Water Pump Plier | G1010023 | 250mm | 1 |
| Insulated Slotted Screwdrivers | G102001 | 2.5x75mm | 1 |
| G102004 | 4.0x100mm | 1 | |
| G102005 | 5.5x125mm | 1 | |
| G102006 | 6.5x150mm | 1 | |
| Insulated Phillips Screwdrivers | G102008 | PH0x75mm | 1 |
| G102009 | PH1x80mm | 1 | |
| G1020010 | PH2x100mm | 1 | |
| G1020011 | PH3x150mm | 1 | |
| Insulated Nut Driver With Screwdriver Handle | G1021004 | 4mm | 1 |
| G1021005 | 5mm | 1 | |
| G1021006 | 6mm | 1 | |
| G1021007 | 7mm | 1 | |
| G1021008 | 8mm | 1 | |
| G1021009 | 9mm | 1 | |
| G1021010 | 10mm | 1 | |
| G1021012 | 12mm | 1 | |
| G1021013 | 13mm | 1 | |
| G1021014 | 14mm | 1 | |
| Insulated Hex Key Wrench | G1075003 | 3mm | 1 |
| G1075004 | 4mm | 1 | |
| G1075005 | 5mm | 1 | |
| G1075006 | 6mm | 1 | |
| G1075008 | 8mm | 1 | |
| G1075010 | 10mm | 1 | |
| G1075012 | 12mm | 1 | |
| Insulated Ring Wrench | G1071008 | 8mm | 1 |
| G1071010 | 10mm | 1 | |
| G1071011 | 11mm | 1 | |
| G1071012 | 12mm | 1 | |
| G1071013 | 13mm | 1 | |
| G1071014 | 14mm | 1 | |
| G1071016 | 16mm | 1 | |
| G1071017 | 17mm | 1 | |
| G1071018 | 18mm | 1 | |
| G1071019 | 19mm | 1 | |
| G1071021 | 21mm | 1 | |
| G1071022 | 22mm | 1 | |
| G1071024 | 24mm | 1 | |
| Insulated Open-end Spanner | G1072008 | 8mm | 1 |
| G10720010 | 10mm | 1 | |
| G1072012 | 12mm | 1 | |
| G10720013 | 13mm | 1 | |
| G10720014 | 14mm | 1 | |
| G10720015 | 15mm | 1 | |
| G10720016 | 16mm | 1 | |
| G10720017 | 17mm | 1 | |
| G1072018 | 18mm | 1 | |
| G10720019 | 19mm | 1 | |
| G1072021 | 21mm | 1 | |
| G10720022 | 22mm | 1 | |
| G1072024 | 24mm | 1 | |
| 1/4″ Insulated Ratchet Wrench | G1073401 | 150mm | 1 |
| 1/4″ Insulated Extension Bar | G1061805 | 100mm | 1 |
| G1061806 | 150mm | 1 | |
| 1/4″ Insulated Hexagon Sockets | G1051406 | 6mm | 1 |
| G1051407 | 7mm | 1 | |
| G1051408 | 8mm | 1 | |
| G1051409 | 9mm | 1 | |
| G1051410 | 10mm | 1 | |
| G1051411 | 11mm | 1 | |
| G1051412 | 12mm | 1 | |
| G1051413 | 13mm | 1 | |
| 1/4″ Insulated Bit Socket For Hexagon Screws | G1052403 | H3 | 1 |
| G1052404 | H4 | 1 | |
| G1052405 | H5 | 1 | |
| G1052406 | H6 | 1 | |
| G1052408 | H8 | 1 | |
| Insulated Adjustable Wrench | G104002 | 250mm | 1 |
| 3/8″ Insulated Ratchet Wrench | G1073402 | 200mm | 1 |
| 3/8″ Insulated Injection T-handle Wrench | G1074820 | 200mm | 1 |
| 3/8″ Insulated Extension Bar | G1061801 | 125mm | 1 |
| G1061802 | 250mm | 1 | |
| 3/8″ Insulated Hexagon Sockets | G1051808 | 8mm | 1 |
| G1051810 | 10mm | 1 | |
| G1051812 | 12mm | 1 | |
| G1051813 | 13mm | 1 | |
| G1051814 | 14mm | 1 | |
| G1051817 | 17mm | 1 | |
| G1051819 | 19mm | 1 | |
| G1051822 | 22mm | 1 | |
| 3/8″ Insulated Bit Socket For Torx Screws | G1052820 | T20 | 1 |
| G1052825 | T25 | 1 | |
| G1052830 | T30 | 1 | |
| G1052840 | T40 | 1 | |
| 3/8″ Insulated Bit Socket For M Screws | G1055408 | M8 | 1 |
| G1055410 | M10 | 1 | |
| G1055412 | M12 | 1 | |
| 1/2″ Insulated Ratchet Wrench | G1073403 | 250mm | 1 |
| 1/2″ Insulated Injection T-handle Wrench | G1074220 | 200mm | 1 |
| 1/2″ Insulated Extension Bar | G1061803 | 125mm | 1 |
| G1061804 | 250mm | 1 | |
| 1/2″ Insulated Hexagon Sockets | G1051210 | 10mm | 1 |
| G1051212 | 12mm | 1 | |
| G1051213 | 13mm | 1 | |
| G1051214 | 14mm | 1 | |
| G1051215 | 15mm | 1 | |
| G1051216 | 16mm | 1 | |
| G1051217 | 17mm | 1 | |
| G1051218 | 18mm | 1 | |
| G1051219 | 19mm | 1 | |
| G1051221 | 21mm | 1 | |
| G1051222 | 22mm | 1 | |
| 1/2″ Insulated Bit Socket For Hexagon Screws | G1052204 | H4 | 1 |
| G1052205 | H5 | 1 | |
| G1052206 | H6 | 1 | |
| G1052208 | H8 | 1 | |
| G1052210 | H10 | 1 | |
| Insulated Cable Knife | G103001 | 190mm | 1 |
| Non-contact Voltage Detector | / | 60-1000V | 1 |
| Insulated Tape | / | 10m | 1 |
VDE Insulated Tools — Built for the Line, Proven Under Pressure
Professional-grade insulated tools that go where others won’t — and come back safe.
Dielectric Safety
All units per batch pass 10,000V dielectric test (50Hz, 1 min) by independent labs, no random sampling. Test reports available for verification. We go beyond IEC/EN 60900.
15 Patents
15 patents cover key structures and processes including jaw, measuring unit, safety lock and coating. Featuring a world-first built-in cable cutting depth measuring device. All patents verifiable via CNIPA.
Ultra-wearproof Insulating Coating
Patented coating improves insulation wear resistance by 40%. Dielectric performance remains stable after 10,000 plug cycles, prolonging service life and reducing costs.
Low Shear Resistance
Optimized jaw curve reduces shear force by 30%, delivering neat cuts and less wire damage. Relieves fatigue during prolonged operation.
Fast Delivery
MOQ: 50 sets per spec (vs 200 sets industry average). Delivery: 15-25 days. Full OEM/ODM available; logos, colors and packaging customizable.
VDE
IEC/EN 60900
1000V AC
CE
MD 2006/42/EC
GS
DIN EN 60900
CCC
GB /T 18269
