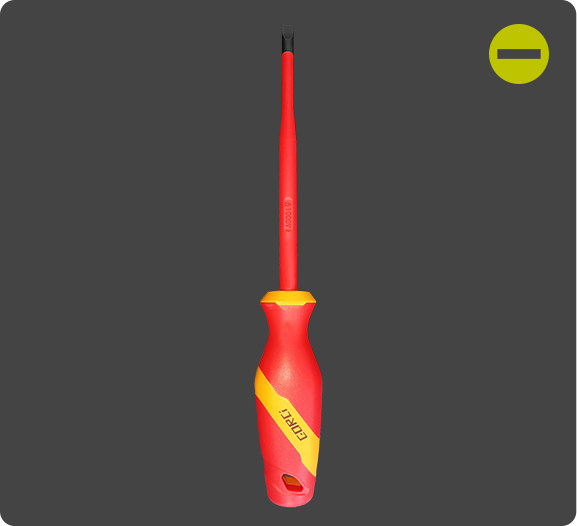

Insulated Slim Slotted Screwdrivers
● According to BS EN IEC 60900:2018.
● 2-component insulated injection handle with ergonomic design.
● Eash tool individually tested at 10000V AC.
Slotted Tip
Flathead tip, fits slotted screws for tightening/loosening.
Long Slender Shaft
Slimmer & longer than standard, reaches deep narrow holes.
Insulated Handle
Insulated. Ergonomic. All-day comfort.
Standards Compliance
According to BS EB IEC 60900:2018.
● Product Parameters
| Item Code |  |  |  |  |  |
| *G1026001 | 0.6 | 3.5 | 100 | 85×28.5 | 185 |
| *G1026002 | 0.8 | 5 | 100 | 100×33.5 | 200 |
| *G1026003 | 1 | 5.5 | 125 | 100×33.5 | 225 |
| *G1026004 | 1.2 | 6.5 | 150 | 110×36.5 | 260 |
| *G1026005 | 1.6 | 8 | 175 | 120×37.5 | 295 |
* VDE Certificate is under approval.
VDE Insulated Tools — Built for the Line, Proven Under Pressure
Professional-grade insulated tools that go where others won’t — and come back safe.
Dielectric Safety
All units per batch pass 10,000V dielectric test (50Hz, 1 min) by independent labs, no random sampling. Test reports available for verification. We go beyond IEC/EN 60900.
15 Patents
15 patents cover key structures and processes including jaw, measuring unit, safety lock and coating. Featuring a world-first built-in cable cutting depth measuring device. All patents verifiable via CNIPA.
Ultra-wearproof Insulating Coating
Patented coating improves insulation wear resistance by 40%. Dielectric performance remains stable after 10,000 plug cycles, prolonging service life and reducing costs.
Low Shear Resistance
Optimized jaw curve reduces shear force by 30%, delivering neat cuts and less wire damage. Relieves fatigue during prolonged operation.
Fast Delivery
MOQ: 50 sets per spec (vs 200 sets industry average). Delivery: 15-25 days. Full OEM/ODM available; logos, colors and packaging customizable.
VDE
IEC/EN 60900
1000V AC
CE
MD 2006/42/EC
GS
DIN EN 60900
CCC
GB /T 18269
