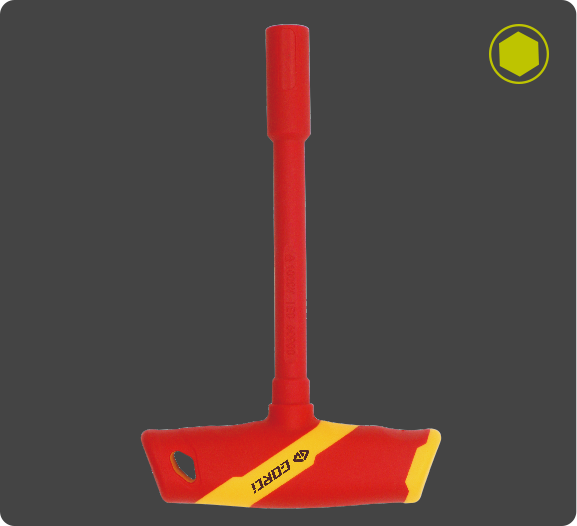

Insulated Nut Driver With T-handle
● According to BS EN IEC 60900:2018.
● 2-component insulated injection handle with ergonomic design.
● Eash tool individually tested at 10000V AC.
Nut Driver Tip
Hollow hex socket slips over nuts/bolts and turns.
T-handle Design
T-shape, two-hand grip, high torque, easy on tight nuts.
Insulated Handle
Insulated. Ergonomic. All-day comfort.
Standards Compliance
According to BS EB IEC 60900:2018.
● Product Parameters
| Item Code |  |  |  |  |  |
| G1022004 | 4 | 6.55 | 36 | 127 | 100×28 |
| G1022005 | 5 | 6.55 | 36 | 127 | 100×28 |
| G1022055 | 5.5 | 6.55 | 36 | 127 | 100×28 |
| G1022006 | 6 | 6.55 | 36 | 127 | 100×28 |
| G1022007 | 7 | 6.55 | 36 | 127 | 100×28 |
| G1022008 | 8 | 6.55 | 36 | 127 | 100×28 |
| G1022009 | 9 | 8.6 | 36 | 127 | 100×28 |
| G1022010 | 10 | 8.6 | 36 | 127 | 100×28 |
| G1022011 | 11 | 8.6 | 36 | 127 | 100×28 |
| G1022012 | 12 | 8.6 | 36 | 127 | 100×28 |
| G1022013 | 13 | 8.6 | 36 | 127 | 100×28 |
| G1022014 | 14 | 8.6 | 36 | 127 | 100×28 |
VDE Insulated Tools — Built for the Line, Proven Under Pressure
Professional-grade insulated tools that go where others won’t — and come back safe.
Dielectric Safety
All units per batch pass 10,000V dielectric test (50Hz, 1 min) by independent labs, no random sampling. Test reports available for verification. We go beyond IEC/EN 60900.
15 Patents
15 patents cover key structures and processes including jaw, measuring unit, safety lock and coating. Featuring a world-first built-in cable cutting depth measuring device. All patents verifiable via CNIPA.
Ultra-wearproof Insulating Coating
Patented coating improves insulation wear resistance by 40%. Dielectric performance remains stable after 10,000 plug cycles, prolonging service life and reducing costs.
Low Shear Resistance
Optimized jaw curve reduces shear force by 30%, delivering neat cuts and less wire damage. Relieves fatigue during prolonged operation.
Fast Delivery
MOQ: 50 sets per spec (vs 200 sets industry average). Delivery: 15-25 days. Full OEM/ODM available; logos, colors and packaging customizable.
VDE
IEC/EN 60900
1000V AC
CE
MD 2006/42/EC
GS
DIN EN 60900
CCC
GB /T 18269
