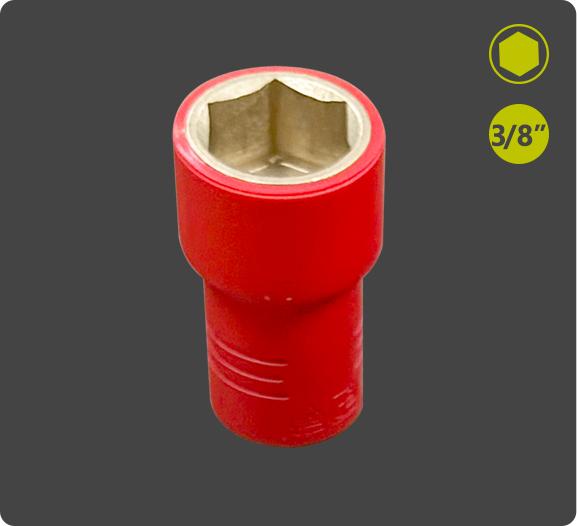

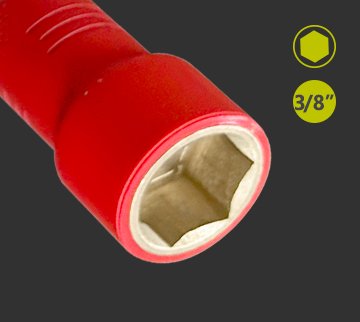

3/8″ Insulated Explosion-proof Hexagon Sockets
● According to BS EN IEC 60900:2018.
● Single-layer insulated coating, basic insulation for general electrical work.
● Eash tool individually tested at 10000V AC.
Explosion-proof Material
Non-sparking alloy, no friction sparks in hazardous environments.
Single-color Insulation
Single-layer insulation, general electrical use.
Standards Compliance
According to BS EB IEC 60900:2018.
● Product Parameters
| Item Code |  | D1(mm) | D2(mm) | L(mm) |
| *E1051806 | 6 | 13.5 | 21 | 45 |
| *E1051807 | 7 | 14.5 | 21 | 45 |
| *E1051808 | 8 | 15.5 | 21 | 45 |
| *E1051809 | 9 | 16.5 | 21 | 45 |
| *E1051810 | 10 | 18 | 21 | 45 |
| *E1051811 | 11 | 19 | 21 | 45 |
| *E1051812 | 12 | 21.5 | 21 | 45 |
| *E1051813 | 13 | 22 | 21 | 45 |
| *E1051814 | 14 | 23.5 | 21 | 45 |
| *E1051815 | 15 | 24.5 | 21 | 45 |
| *E1051816 | 16 | 25.5 | 21 | 45 |
| *E1051817 | 17 | 27 | 21 | 45 |
| *E1051818 | 18 | 28 | 21 | 45 |
| *E1051819 | 19 | 29.5 | 21 | 45 |
| *E1051820 | 20 | 30.5 | 21 | 45 |
| *E1051821 | 21 | 31.5 | 21 | 45 |
| *E1051822 | 22 | 33.5 | 21 | 45 |
* VDE Certificate is under approval.
VDE Insulated Tools — Built for the Line, Proven Under Pressure
Professional-grade insulated tools that go where others won’t — and come back safe.
Dielectric Safety
All units per batch pass 10,000V dielectric test (50Hz, 1 min) by independent labs, no random sampling. Test reports available for verification. We go beyond IEC/EN 60900.
15 Patents
15 patents cover key structures and processes including jaw, measuring unit, safety lock and coating. Featuring a world-first built-in cable cutting depth measuring device. All patents verifiable via CNIPA.
Ultra-wearproof Insulating Coating
Patented coating improves insulation wear resistance by 40%. Dielectric performance remains stable after 10,000 plug cycles, prolonging service life and reducing costs.
Low Shear Resistance
Optimized jaw curve reduces shear force by 30%, delivering neat cuts and less wire damage. Relieves fatigue during prolonged operation.
Fast Delivery
MOQ: 50 sets per spec (vs 200 sets industry average). Delivery: 15-25 days. Full OEM/ODM available; logos, colors and packaging customizable.
VDE
IEC/EN 60900
1000V AC
CE
MD 2006/42/EC
GS
DIN EN 60900
CCC
GB /T 18269
