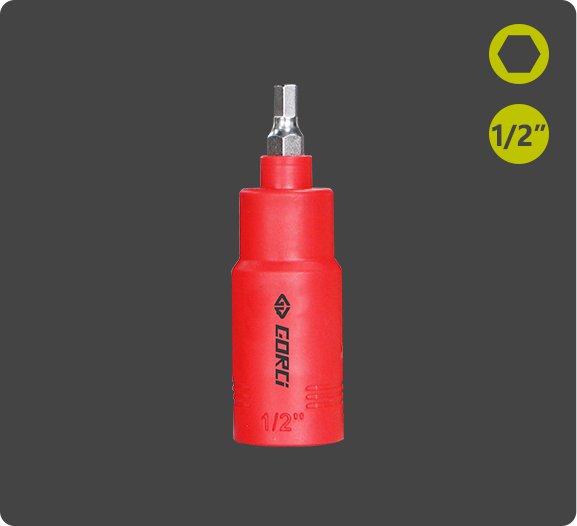

1/2″ Insulated Socket Bit
● According to BS EN IEC 60900:2018.
● Single-layer insulated coating, basic insulation for general electrical work.
● Eash tool individually tested at 10000V AC.

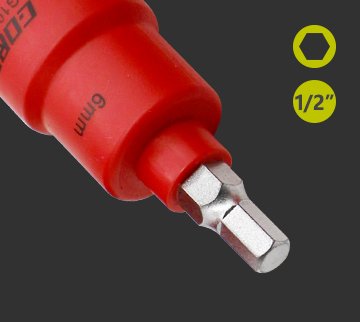

H Type Socket Design
H-type hollow hex socket, fits H-bits with center hole.
Single-color Insulation
Single-layer insulation, general electrical use.
Standards Compliance
According to BS EB IEC 60900:2018.
● Product Parameters
| Item Code |  | L(mm) |
| G1052804 | H4 | 74 |
| G1052805 | H5 | 74 |
| G1052806 | H6 | 74 |
| *G1052807 | H7 | 74 |
| G1052808 | H8 | 74 |
| *G1052810 | H10 | 74 |
| *G1052812 | H12 | 155 |
* VDE Certificate is under approval.
VDE Insulated Tools — Built for the Line, Proven Under Pressure
Professional-grade insulated tools that go where others won’t — and come back safe.
Dielectric Safety
All units per batch pass 10,000V dielectric test (50Hz, 1 min) by independent labs, no random sampling. Test reports available for verification. We go beyond IEC/EN 60900.
15 Patents
15 patents cover key structures and processes including jaw, measuring unit, safety lock and coating. Featuring a world-first built-in cable cutting depth measuring device. All patents verifiable via CNIPA.
Ultra-wearproof Insulating Coating
Patented coating improves insulation wear resistance by 40%. Dielectric performance remains stable after 10,000 plug cycles, prolonging service life and reducing costs.
Low Shear Resistance
Optimized jaw curve reduces shear force by 30%, delivering neat cuts and less wire damage. Relieves fatigue during prolonged operation.
Fast Delivery
MOQ: 50 sets per spec (vs 200 sets industry average). Delivery: 15-25 days. Full OEM/ODM available; logos, colors and packaging customizable.
VDE
IEC/EN 60900
1000V AC
CE
MD 2006/42/EC
GS
DIN EN 60900
CCC
GB /T 18269
